Sinrey PoE SIP Paging Speakers and IP Speakers

- White round paging speaker
-Standard SIP protocol, TCP playback
-POE Module Power Supply, 20 W Speaker
-10/100M basic adaptive Ethernet interface
  • SIP-743

  • SINREY

Availability:

Sinrey 743 network ceiling SIP speaker with 10/100M Ethernet interface, built-in 20W high-quality speakers, can play network audio through its own amplifier.Sinrey 743 ceiling speaker supports the setup of up to 10 multicast zones with priority, can be used as a broadcast terminal.

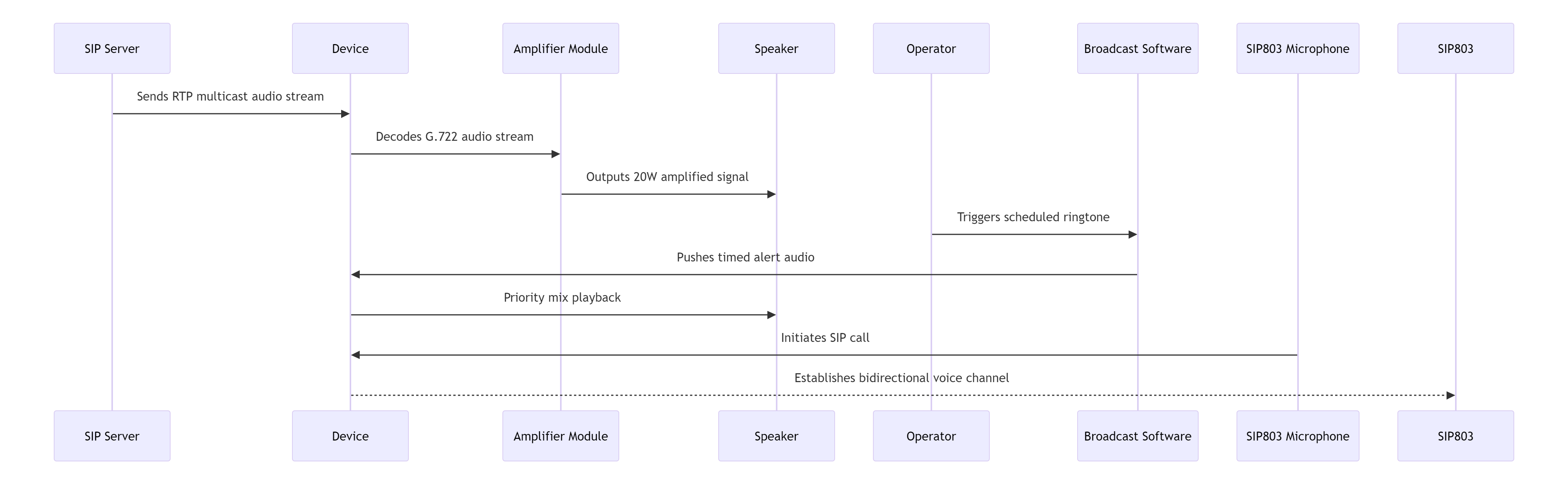

Application Scenario Flowchart


Application Scenario Flowchart


Parameters


Power

  • DC 12-24V

  • Additional configurations with POE functionality can be purchased


Audio Formats

  • MP3 up to 192 kBit fixed & variable bit rates

  • G.711 a/u,G.722,PCM,mp3 decodec

  • Opus by OEM


User / Application Interfaces

  • Management system (software/web)

  • Network Control API

Network Interface

  • 10/100M Base adaptive Ethernet interface

  • SIP v1 (RFC2543), v2 (RFC3261), TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP.


Electrical interface

  • 1 RJ45 network interface

  • 1 DC 5.5-2.1 power connector


Other

  • Specification size: Φ230x150mm(opening:Φ195mm)

  • Operating temperature range -40~85℃

  • Storage temperature range -40~85℃

Downloads


SIP743T Network Active Ceiling Speaker.pdf

Manager(V1.5.0).zip
