230x150mm,Ceiling Speaker, 20W

  • High-power audio output
  • SIP protocol broadcast and multicast
  • Flexible power supply and industrial-grade durability
  • Multi-zone priority management

  • SIP743

  • SINREY

Availability:
Inquire

Sinrey 743 SIP network active ceiling speaker is a 20W high-power audio terminal designed for public broadcasting systems. Its core advantage lies in the deep integration of standard SIP protocol, which can be directly connected to the SIP communication network of hospitals, schools, shopping malls and other places, and realize seamless cooperation with broadcast microphones (such as SIP803T) and SIP phones to build an intelligent broadcasting system.


Core Features

  1. 20W high power coverage capability

  2. SIP protocol broadcast and multi-region management

  3. Flexible power supply deployment capability

  4. Industrial-grade environmental adaptability


Parameters

Power

  • DC 12-24V

  • Additional configurations with POE functionality can be purchased


Audio Formats

  • MP3 up to 192 kBit fixed & variable bit rates

  • G.711 a/u,G.722,PCM,mp3 decodec

  • Opus by OEM


User / Application Interfaces

  • Management system (software/web)

  • Network Control API

Network Interface

  • 10/100M Base adaptive Ethernet interface

  • SIP v1 (RFC2543), v2 (RFC3261), TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP.


Electrical interface

  • 1 RJ45 network interface

  • 1 DC 5.5-2.1 power connector


Other

  • Specification size: Φ230x150mm（opening：Φ195mm）

  • Operating temperature range -40～85℃

  • Storage temperature range -40～85℃

Downloads

SIP743T Network Active Ceiling Speaker.pdf

Manager(V1.5.0).zip

Previous:
Next:
Leave A Message

Related Products

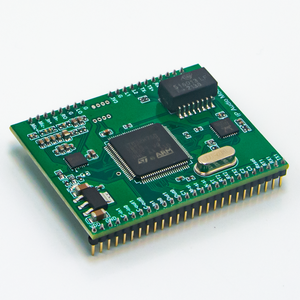

Network Audio Module IP Broadcast System Board with Amplifier Intercom Playback Function
