SIP602V-M
SINREY

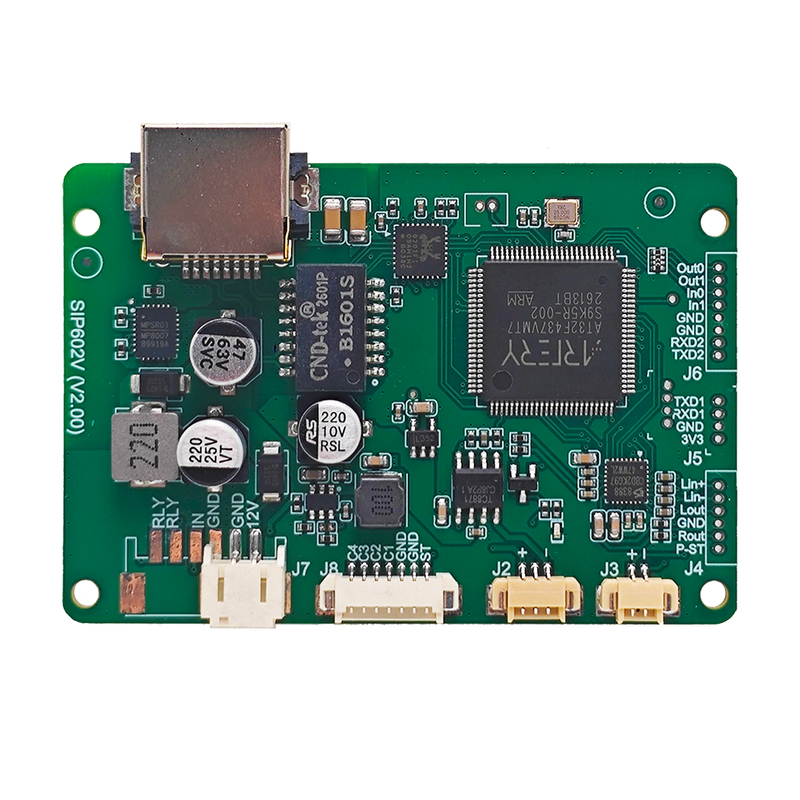

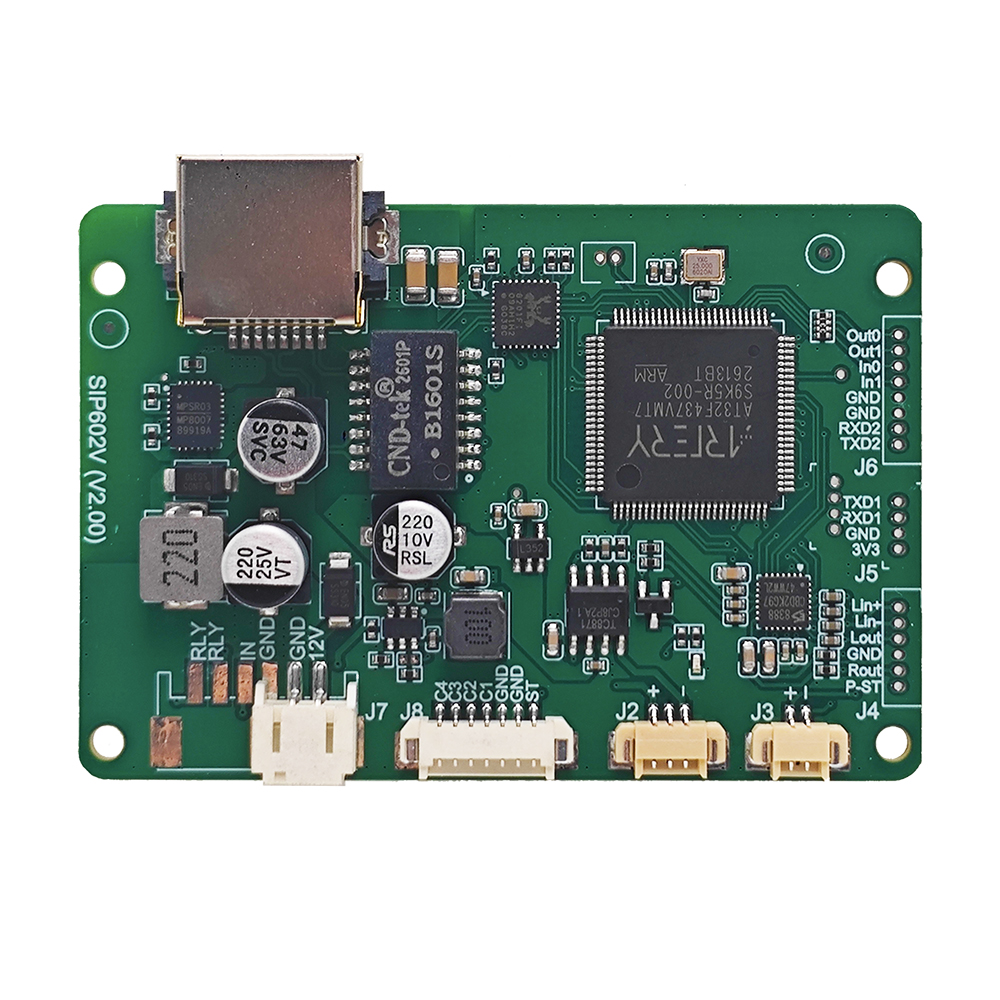

SIP602V-M is a SIP network intercom module with 10/100M Ethernet interface. It receives audio data from SIP network, decodes and plays it in real time, and can be connected to microphone input and speaker output. The SIP602V-M module can realize SIP intercom, playback and other functions.
SIP602V-M has RJ45 network interface and Powered by DC 12-24V power supply, and also supports POE function. After power on, SIP602V-M will automatically obtain an IP address (BootP or DHCP), or use the Manager software to find its IP address. The terminal can also be easily configured and controlled via a standard web browser.
SIP602V-M supports various control and communication modes, and we provide development documents and programming examples for playback and SIP intercom (out of SIP server). It also provides serial port control commands and network control commands. Software developers can write their own audio applications with custom functions.
Network interface: 10/100Base-TX adaptive network, RJ45 interface, sending and receiving data indication
Network protocol: support SIP v1 (RFC2543), v2 (RFC3261), TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, etc.
MIC input: can be connected to a high-performance microphone, the frequency domain is 70 ~ 12.K5Hz; the typical amplitude is 50mVpp, and the signal-to-noise ratio is 68dB
Intercom output: 2W power amplifier output, can be connected to 8 ohm constant resistance speaker
Line output: one audio source output, can be used as audio output, external power amplifier speaker
Intercom mode: support echo suppression function switch, key answer and key hang up, automatic answer and timeout hang up and other modes
Relay output: support remote control, realize remote linkage external equipment
Input voltage:Voltage DC 12 ~ 24V or POE AT+ power supply
Power consumption: Static <300mW
Working temperature: -40℃～85℃

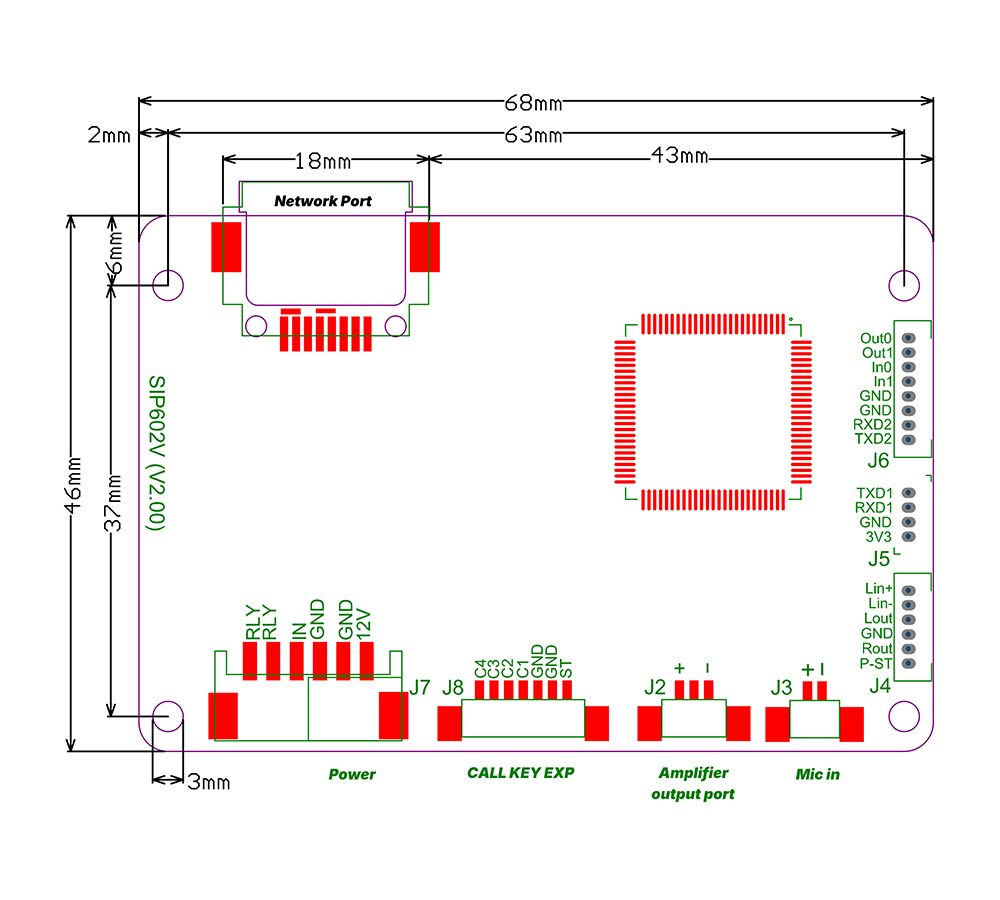

Specification size: 68×46×17mm
