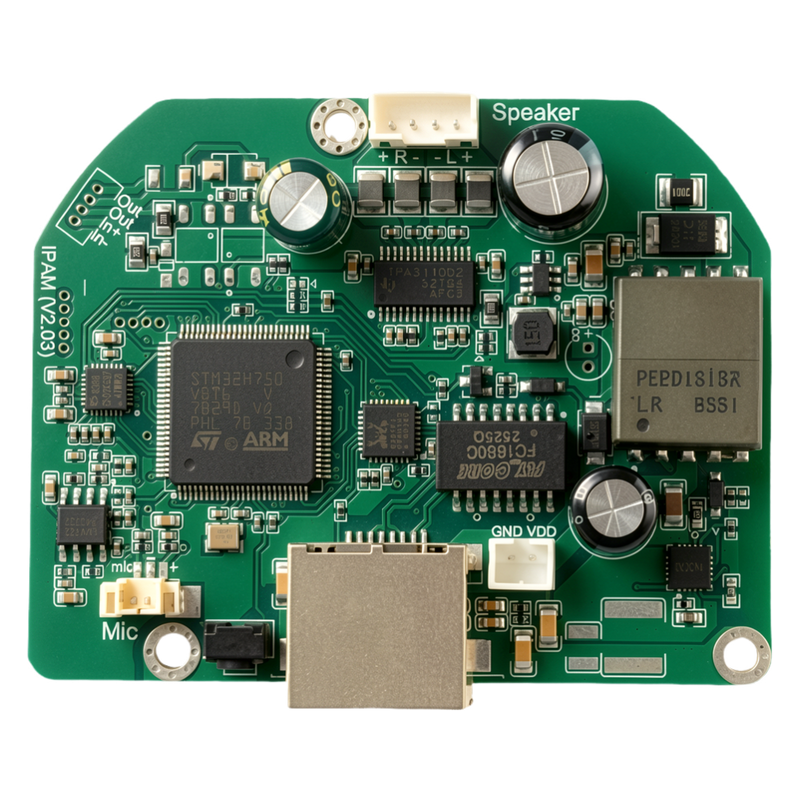

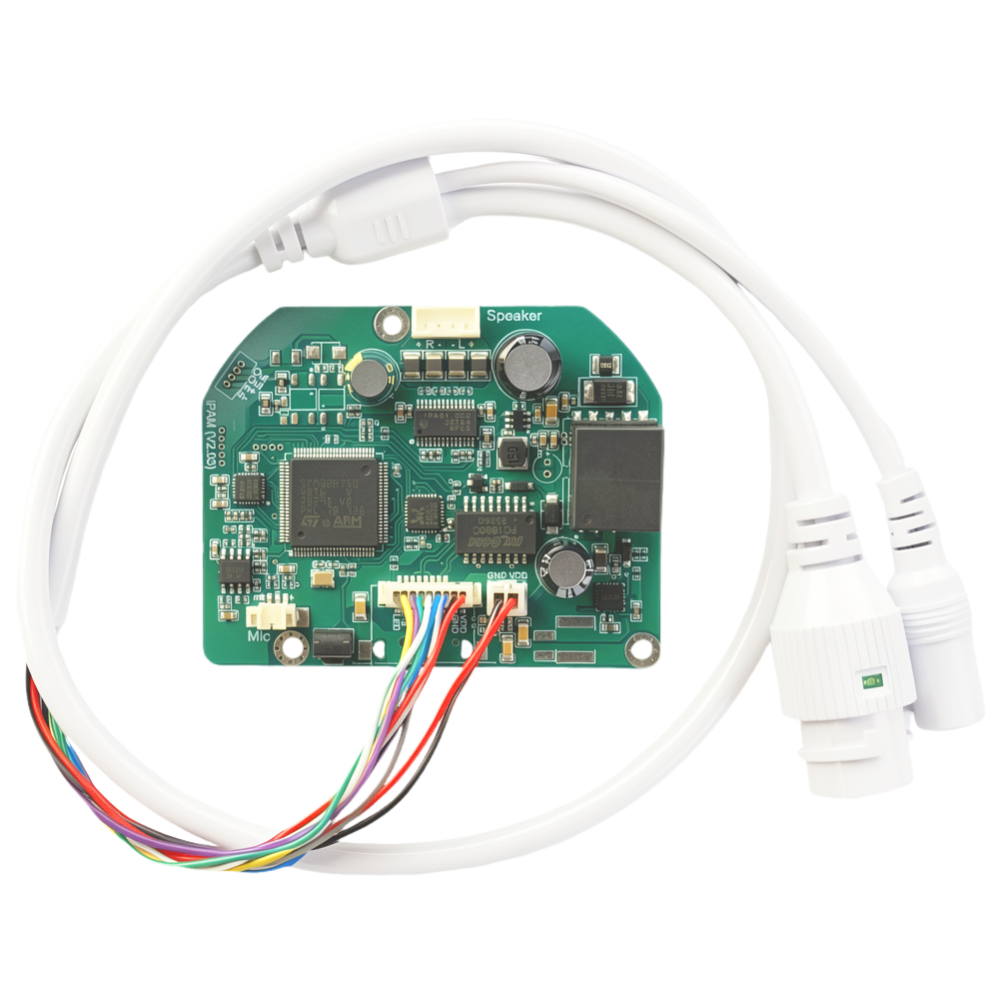

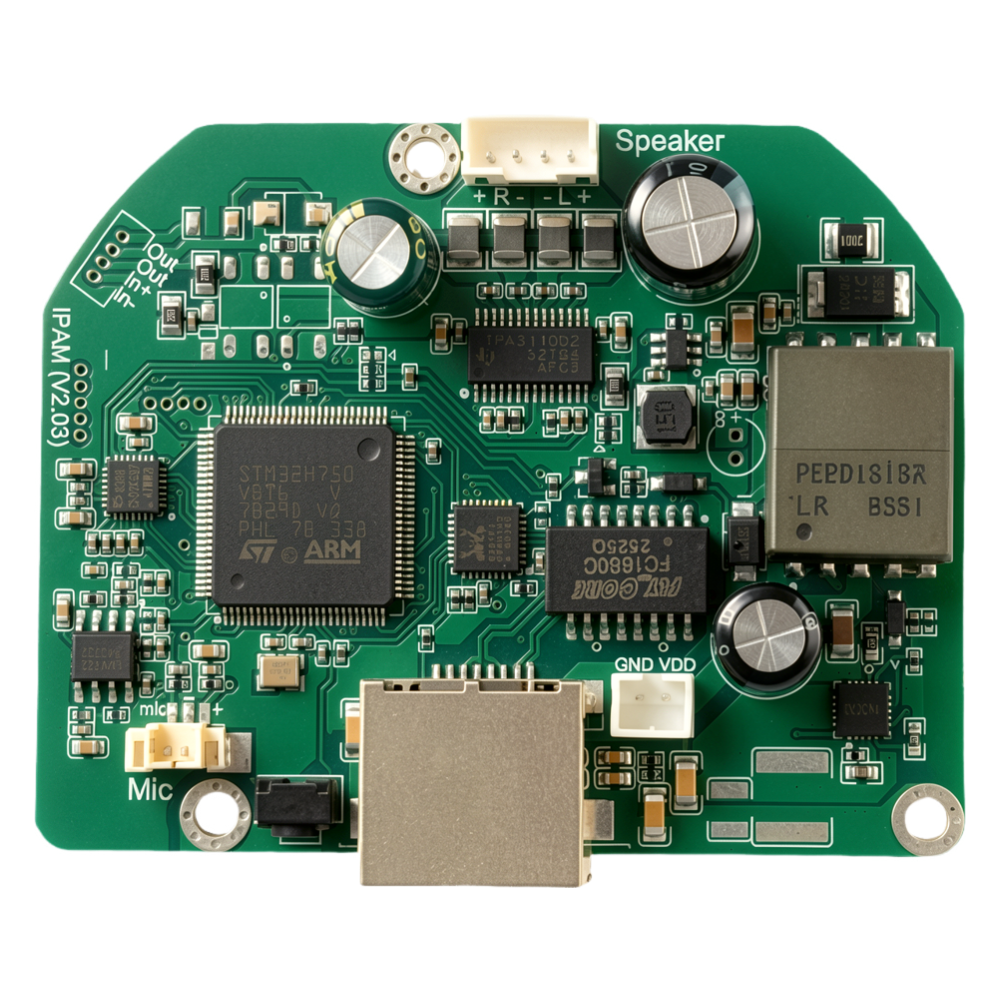

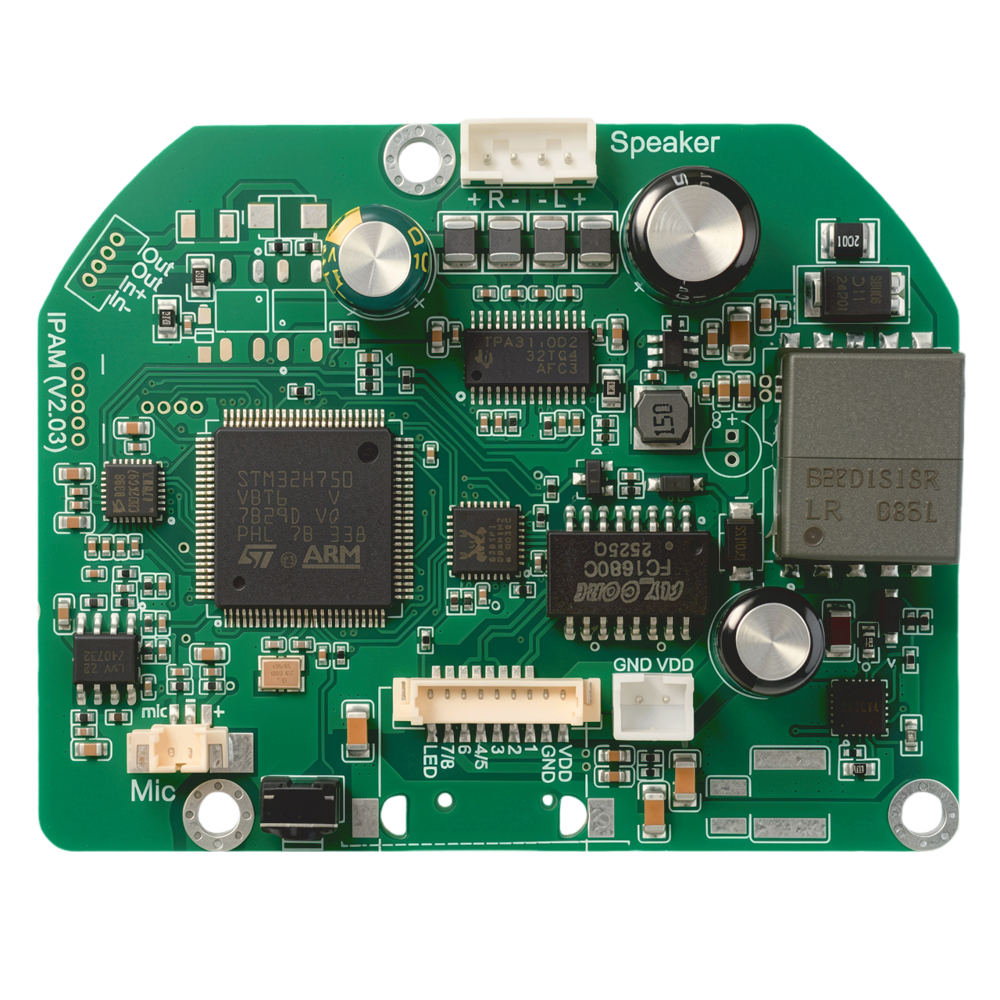

SIP Audio Playback Module with PoE — SIP2502T


- Support SIP protocol
- 2*15W or 1*30W amplifier output
- PoE — Power over Ethernet


  • SIP2502T

  • SINREY

Availability:
Inquire

The SIP2502T is a standalone SIP audio playback module featuring 2*15W or 1*30W amplified audio output. It is designed for passive reception of SIP intercom requests and RTP multicast, decoding and playing them. With support for G.711a/u and G.722 audio codec protocols, the SIP2502T is versatile and applicable in various scenarios including real-time paging, timed broadcast, background music, and emergency broadcast.


Features

This series of modules can be used in the following areas:

- Network alarms, network players

- Background music and music hold encoders for VoIP applications

- Low latency IP audio encoders for various


Parameters

Power

  • Supports DC 12–24V and PoE power supply.

  • 2*15W or 1*30W amplifier output


Network Interface

  • 10/100 Mbit Ethernet (Auto)

  • SIP v1 (RFC2543), v2 (RFC3261), TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP.


User / Application Interfaces

  • Integrated management system (software/web)


Misc. Interfaces

  • 2 state outputs with TTL Level


Audio Formats

  • G.711 a/u,G.721,PCM decodec

  • G.711 a/u,G.722 encodec

  • Opus by OEM

  • Supports acoustic echo cancellation


Audio Interfaces

  • Analog stereo out 2*15W or 1*30W

  • Mic in,frequency range of 70Hz to 12.5KHz

  • Line in,typical amplitude 2000mVpp

Other

  • 71mm×56mm×17mm

  • Operating temperature range -40～85℃

  • Storage temperature range -40～85℃


Downloads

SIP25xxT POE SIP Audio Module Series

Manager(V1.3.7).zip

Manager Manual.pdf
