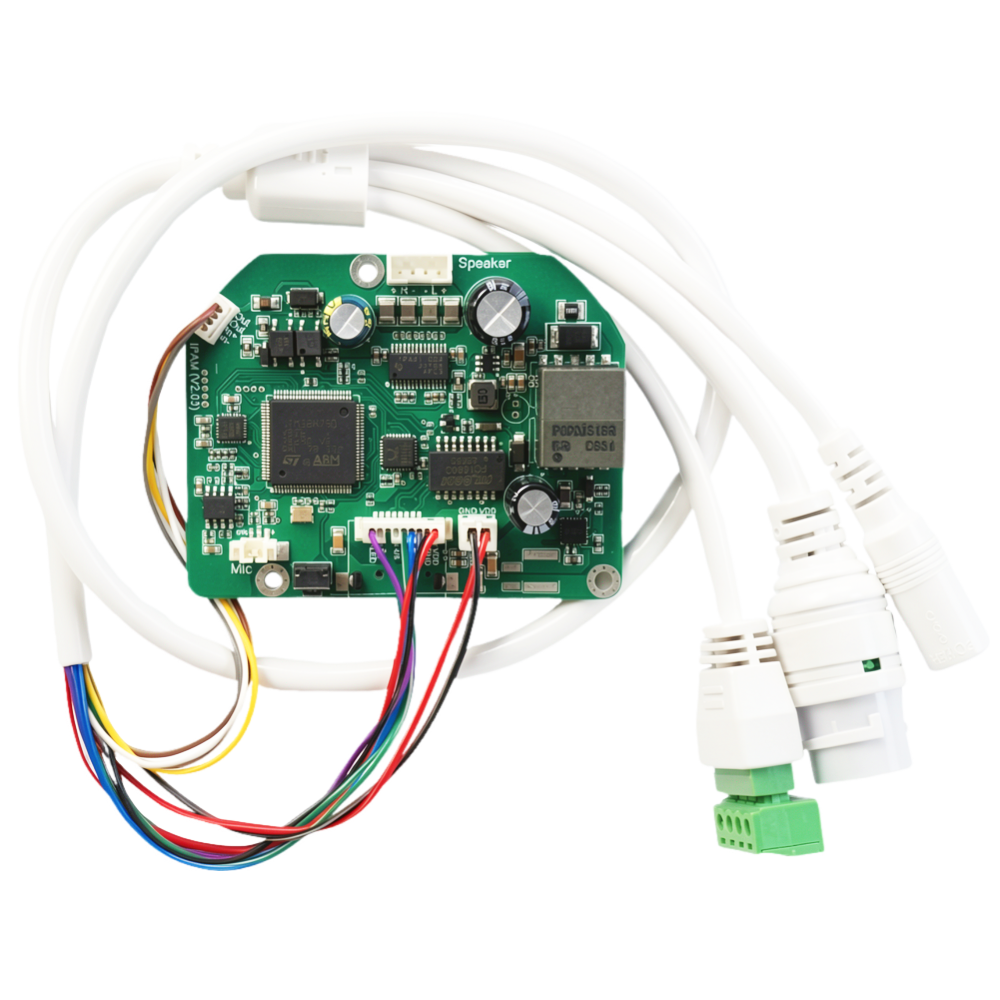

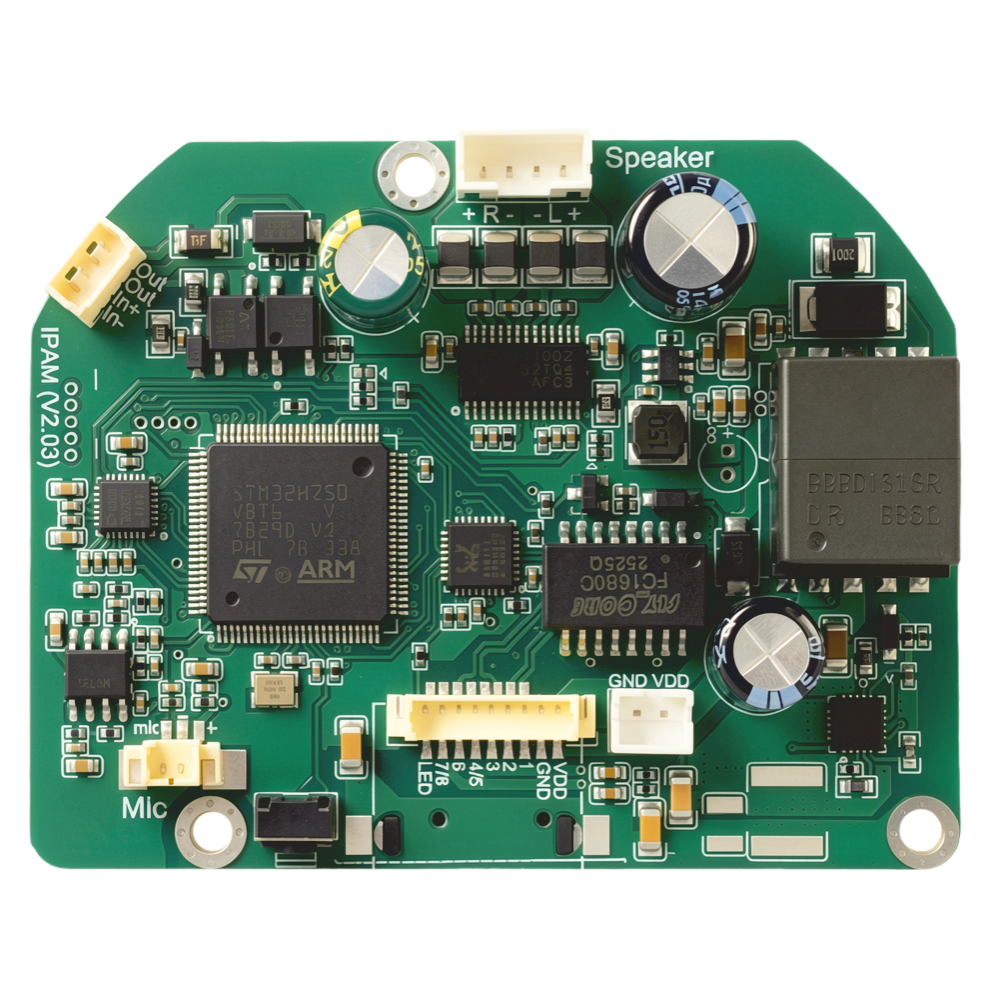

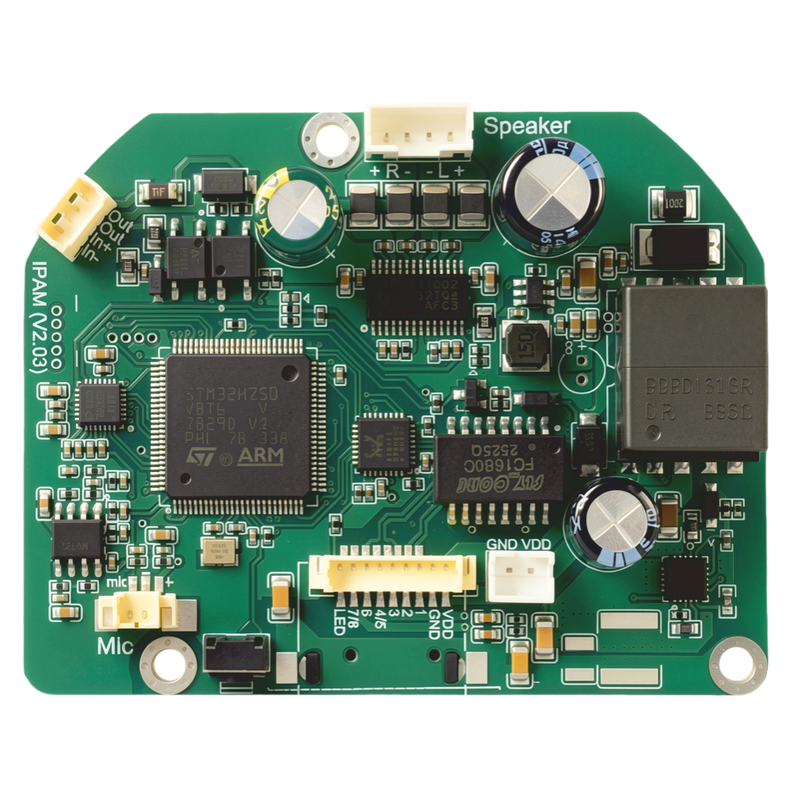

SIP2515T
SINREY

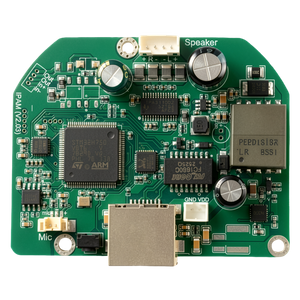

The SIP2515T is an upgraded mid-range PoE SIP audio module built upon the SIP2502T. It retains all core base functions of the series, including integrated 30W power amplification, compatibility with single/dual speakers, SIP communication, RTP multicast decoding & playback, and offline playback of short audios stored in on-board SPI flash. It fulfills conventional demands for network audio playback, intercom and paging.
Compared with the base model, it comes with multiple enhanced features. It supports G.711a/u and G.722 audio codecs for broader compatibility with network audio streams, delivering clearer audio quality and improved transmission adaptability. On the hardware side, it is equipped with one galvanically isolated digital input and one relay output to receive external signals and realize linkage control of peripheral devices. In addition, ONVIF protocol is supported to achieve seamless connection with IP cameras and video surveillance systems for integrated audio-video linkage.
It continues to adopt dual power supply via PoE AT+ and 24 V DC. Suitable for complex environments such as industrial sites, buildings and security systems, it is ideal for audio intercom, audio-video linkage and equipment signal interconnection projects requiring medium-to-high-end audio systems.
This series of modules can be used in the following areas:
- Network alarms, network players
- Background music and music hold encoders for VoIP applications
- Low latency IP audio encoders for various
Power
Network Interface
User / Application Interfaces
Misc. Interfaces
| Audio Formats
Audio Interfaces
Other
|
