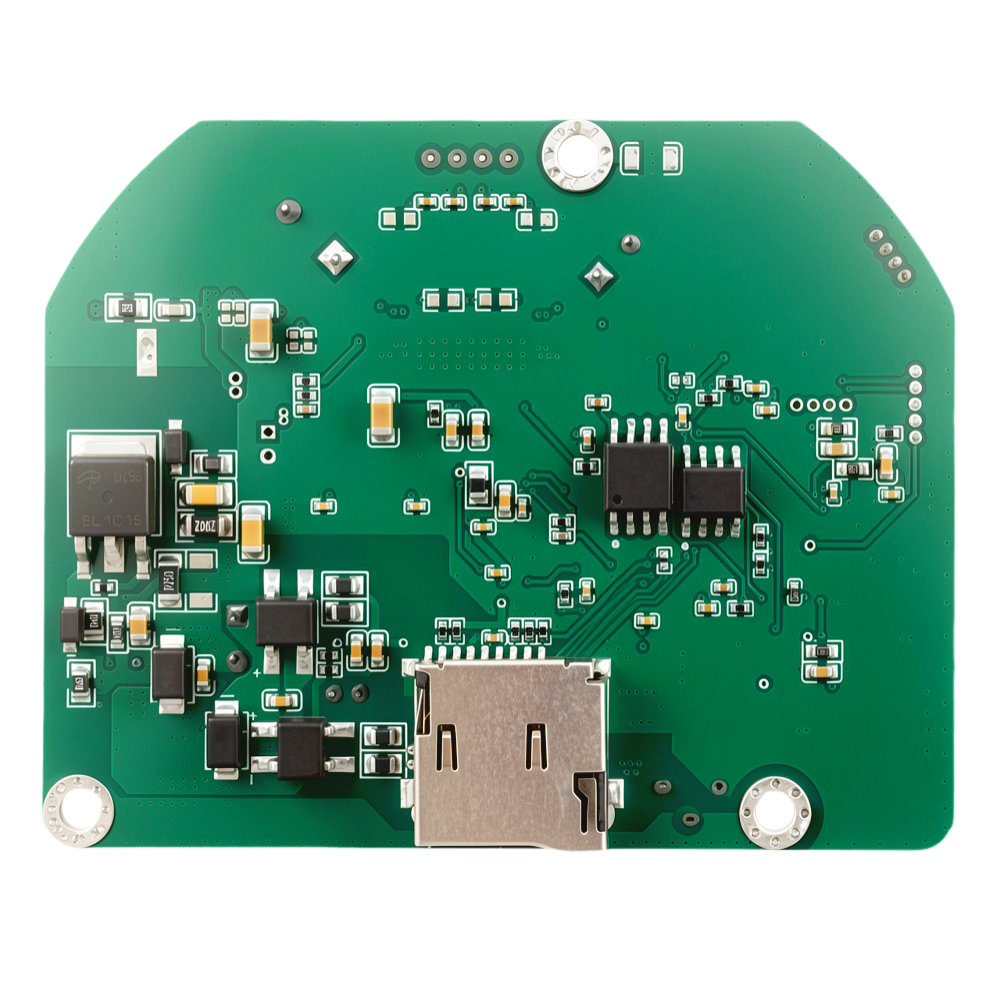

SIP2535T
SINREY
The SIP2535T is the high-end PoE SIP audio module of the SIP25xxT series, developed on the basis of all functions of the SIP2515T. It fully inherits all base capabilities and upgraded features of the SIP2515T, including up to 30W audio output, standard SIP protocol, G.711a/u & G.722 codecs, ONVIF connectivity, one channel of IO input and IO output linkage, offline playback via on-board SPI flash, as well as dual power supply of PoE AT+ and 24 V DC. It supports real-time intercom, public paging and audio-video linkage applications.
Its core upgrade lies in the support for external SD card audio storage, which overcomes the capacity limitation of on-board flash memory. Massive long-duration audio files can be stored locally for offline playback. It can operate independently without network access to perform unattended voice announcements, multi-segment event-triggered voice prompts and long-time alarm broadcasts, greatly expanding application flexibility.
With comprehensive protocol compatibility, flexible hardware linkage, dual-storage playback and reliable dual power supply, the SIP2535T is extensively deployed in smart buildings, large-scale security systems, industrial automation audio broadcasting and park independent broadcast systems. It is an all-in-one IP audio solution for projects with advanced requirements on audio storage, offline playback and system interconnection.
This series of modules can be used in the following areas:
- Network alarms, network players
- Background music and music hold encoders for VoIP applications
- Low latency IP audio encoders for various
Power
Network Interface
User / Application Interfaces
Misc. Interfaces
| Audio Formats
Audio Interfaces
Other
|
